Buy or rent our EL & PL inspection equipment
Perform EL and PL inspections yourself under any operating conditions with our patented DaySy inspection technology.
Equipment > Accessoires

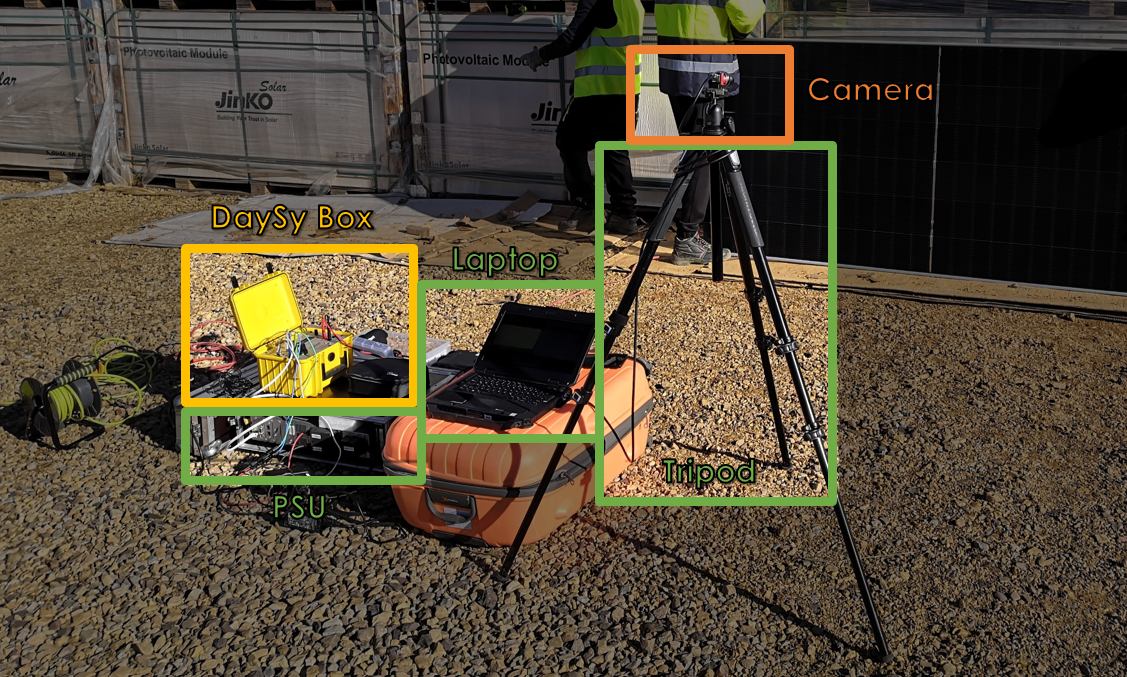

Complete your set-up with field proven accessories for your application.
MEL PSU
Power Supply for one PV module
- Output: 80 V, 19 A, 1520 W
- Input: 85 - 265 VAC, 47 - 63 Hz
- Perfect for post-shipment inspection
SEL PSU
Power Supply for a full PV string
- Output: 1500 V, ± 30 A, ± 15 kW
- Input: 3 x 380 - 480 VAC, 50 - 60 Hz
- Perfect for PV string inspection
Laptop
Tough Outdoor Laptop
- Rugged and daylight readable
- Configured and tested
- Reliable Linux LTS OS
Tripod
Camera Stand
- Light & rugged
- Suitable camera ball head
- Custom laptop tray
Barcode Scanner
Industrial Outdoor Scanner
- Extended range even in daylight
- QR- and Barcodes
- Software remote-control with barcode commands for an even easier and quicker inspection
Optics
Additional lenses
- Adapt the camera for different applications
- Field tested high-quality lenses
- SWIR coating
Applications
MEL: Module EL inspection
Inspect one single PV module at a time.Post-shipment inspection
Easily ensure that your PV modules meet all necessary specifications and quality standards upon arrival. Care for bankability and traceability of the project. Inspect samples after delivery in a warehouse or on site for damage and cracks possibly caused during transport.
Easy setup even at daylight
Our DaySy Equipment allows you to inspect PV modules without the need for complicated setups during the day. Place the camera on a tripod and you are good to go: any time indoors or outdoors.
High throughput of 480 modules per day
Within 8 working hours you can inspect up to 480 modules. Each high-resolution EL image is stamped with the serial number of the PV module.
PL Upgrade
With the MEL-PL upgrade you inspect installed PV modules one by one without the need of an additional electrical power source.
Recommended Setup
Camera: HR 246,
Package: MEL package,
Accessoires: PSU MEL, Laptop, Barcode Scanner Tripod
SEL: String EL inspection
Power a full PV string at once to quickly inspect each module.Post installation / disaster inspection
Our patented DaySy process allows luminescence inspections of PV modules in their installed state in full daylight. Disassembly of the modules or complex setups and containers are simply outdated.
EL a whole PV String at once!
The electrical power source energises the entire PV string while the camera moves from module to module to generate high resolution images. A barcode may be attached as well.
High throughput of 1200 modules per day
Within 8 working hours you can inspect up to 1200 modules. While inspecting, you create high-resolution EL images of each PV module, which provide information about the degree of damage and its cause.
PL Upgrade
The SEL-PL Upgrade energises a full PV string without the need of an additional electrical power source.
Recommended Setup
Camera: HS 53,
Package: SEL package,
Accessoires: PSU SEL, Laptop, Tripod
Interested?
Please contact us if you are interested.
We will be happy to advise you!
